Normal Stress


Quick
Normal stress is stress perpendicular to the surface of interest; usually represented by the symbol σ


Equations
(Eq1)
σ =
P
A
General equation for normal stress


Nomenclature
Pload
Aarea


Details

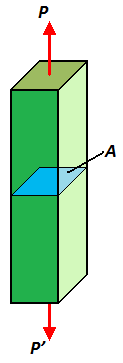

Normal stress is when a force is or a distribution of forces are acting perpendicular to the surface per unit area. The general equation for normal stress is:

(Eq1)
σ =
P
A

The equation states that stress equals force per unit area. The intensity of the forces distributed over a given section is called the stress on that section. Normal stress is associated with axial loading.

normal stress

axial loading
