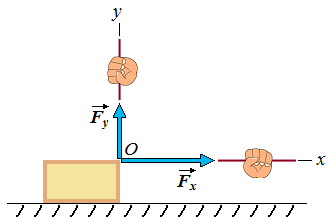

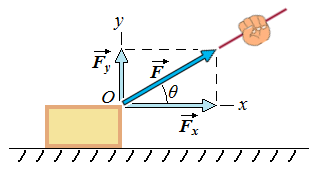

Force |
Fig3. Static load. | Fig4. Impact load. | Fig5. Variable load. |
Static loads are steady, constant or are applied slowly. The load does not change very much in value. Examples include the weight of a fluid in a storage tank and the dead weight of a structure upon it supports. | Impact loads are applied suddenly, usually at high velocity. There is, frequently, actual impact (a blow) on the machine member by another machine member or some external body. Impact loads are common to such machines as pile drivers and punch presses, to name a few. | Variable loads are applied in various ways, but in each case the value of force is variable. In some cases the load is constantly varying, as in the connecting rods in an engine. An extreve condition is typified by a rotating shaft which experiences a complete reversal of load on each cycle. If fibers along the top of a shaft are stressed in compression, those along the bottom are stressed in tension. At any point on the shaft, each revolution produces a change from tension to compression. |
